Equipped with comprehensive insulation properties, from Porvoo to all of Finland
Oy Resiterm Ab's coil resistors are manufactured by:
- with micanite insulation
- with ceramic insulation
- with magnesium oxide insulation
- as a resistor cast in aluminum
or according to the customer's needs and intended use
Manufacturing is always customer-oriented and flexible, so that the customer receives the best possible products. We use first-class raw materials, which combined with our 40 years of experience guarantee high-quality product manufacturing
also for demanding orders. We deliver rim resistors from our location in Porvoo to all parts of Finland. Request a quote or inquire more!
Micanite-insulated band resistors
The standard design is a resistor coated with a chromium plate (ferritic stainless steel plate, diameter 0.5 mm). The resistors have a maximum recommended surface power of 4 W/cm² and a maximum recommended operating temperature of 450 ºC. The band resistor can be notched or holes can be made in it as needed.
The power of the resistor can also be divided into sections of different power around the circumference. In addition, the resistor can also be manufactured so that it covers only part of the circumference. All band and plate resistors can be electrically connected using a socket, screws (with or without a housing), and a wire or cable.

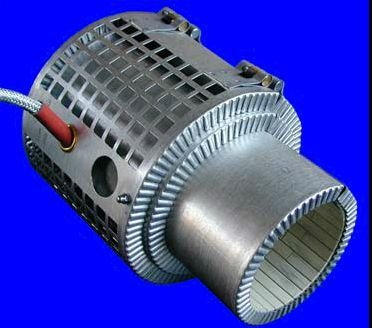

Ceramic insulated band resistors
A resistor made of ceramic blocks, with a body shell made of chrome plate. The maximum recommended surface power is 8 W/cm² and the maximum recommended temperature is 800 ºC. These resistors can also be made with holes or slots.
Let us know what kind of rim resistors you need and we'll get your order ready.
Contact us!
