We manufacture nozzle resistors in Porvoo and deliver them throughout Finland.
Oy Resiterm Ab: CMBPE nozzle resistors are the result of several years of development and research . Thanks to their fully enclosed design, the nozzle resistors are functional even in difficult conditions . Molten plastic, water or other liquid substances cannot penetrate the resistor and damage it. We manufacture nozzle resistors at our premises in Porvoo, but deliveries are possible throughout Finland. Request a quote directly or inquire more!
About the features
The basic models of nozzle heaters are made of brass. The maximum surface power is 6 W/cm² and the temperature is 400 °C. The wires are pure nickel, heat resistant to 400 °C and the standard length of the wires is 500 mm, but other lengths are also available on request. The steel braid protects the wires from mechanical damage.

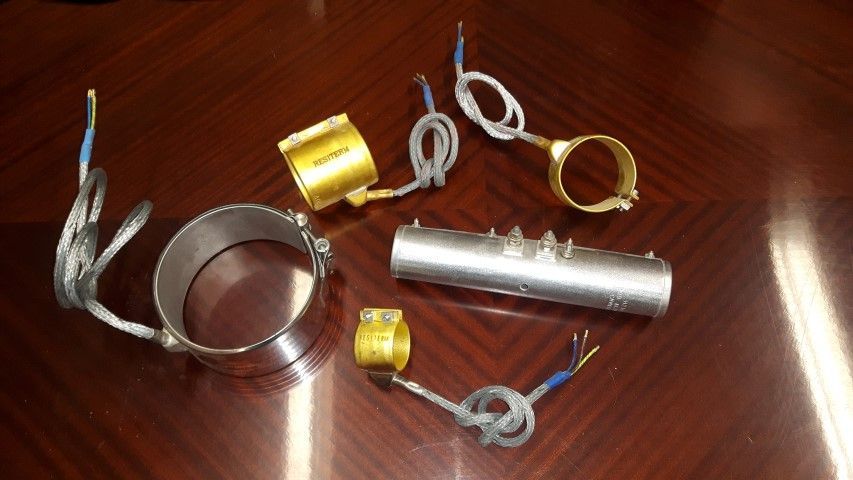

The connection box in the basic model (picture below) is axial (30°). Alternative connections are axial 0°, radial or tangential.
Installation and tightening
- 2 pcs brass screws,
- 2 pcs non-rotating lock nuts
- Allen key Ø 4 mm
NOTE! Remember to retighten after initial heating.
Take advantage of our expertise
And order nozzle resistors from us. We have 40 years of experience, high-quality machinery and first-class raw materials. We offer the best in both service and product manufacturing. Also check out the other resistors we manufacture.
